Filling process 1K 400ml spray paint can

Stir the mixed varnish.

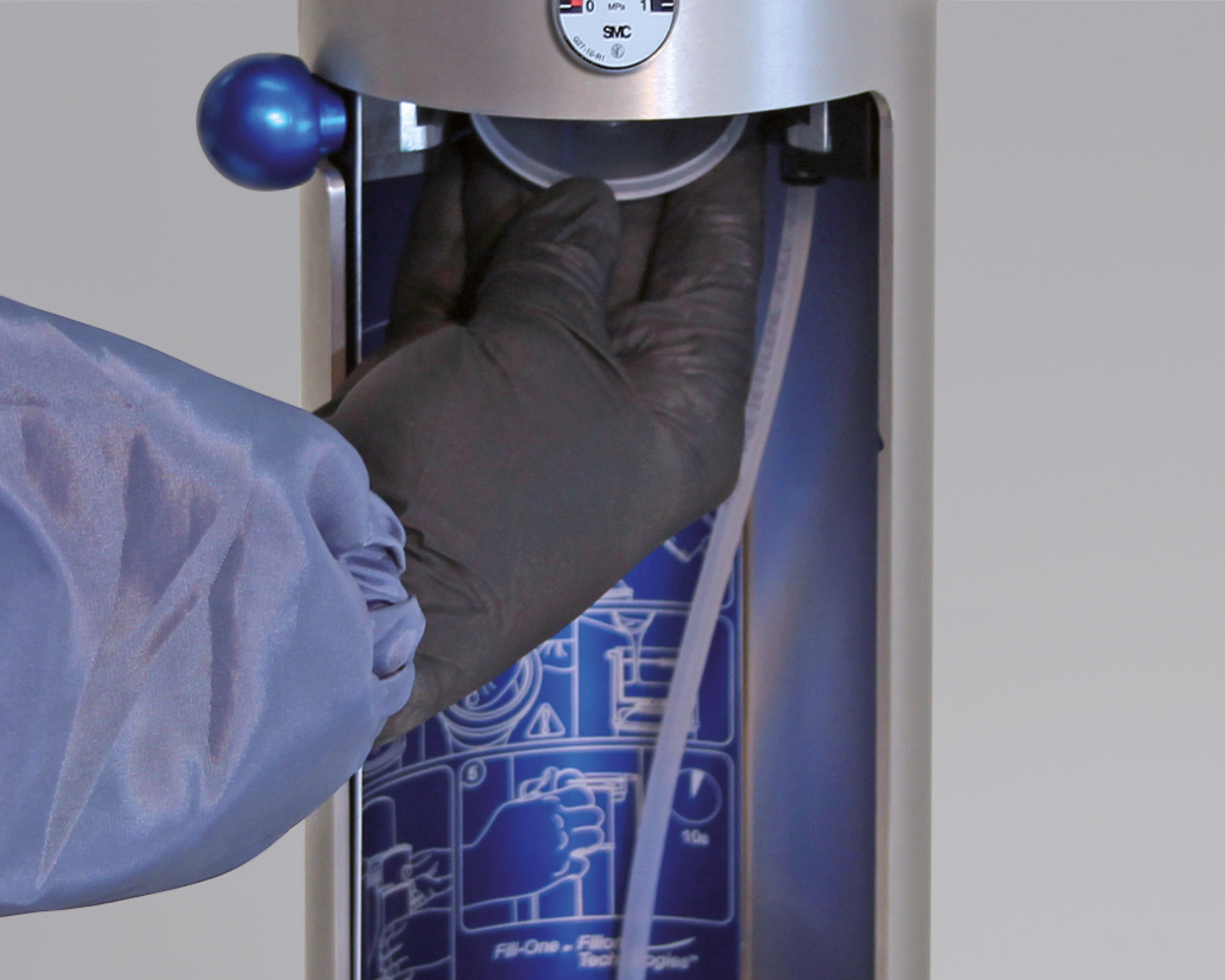

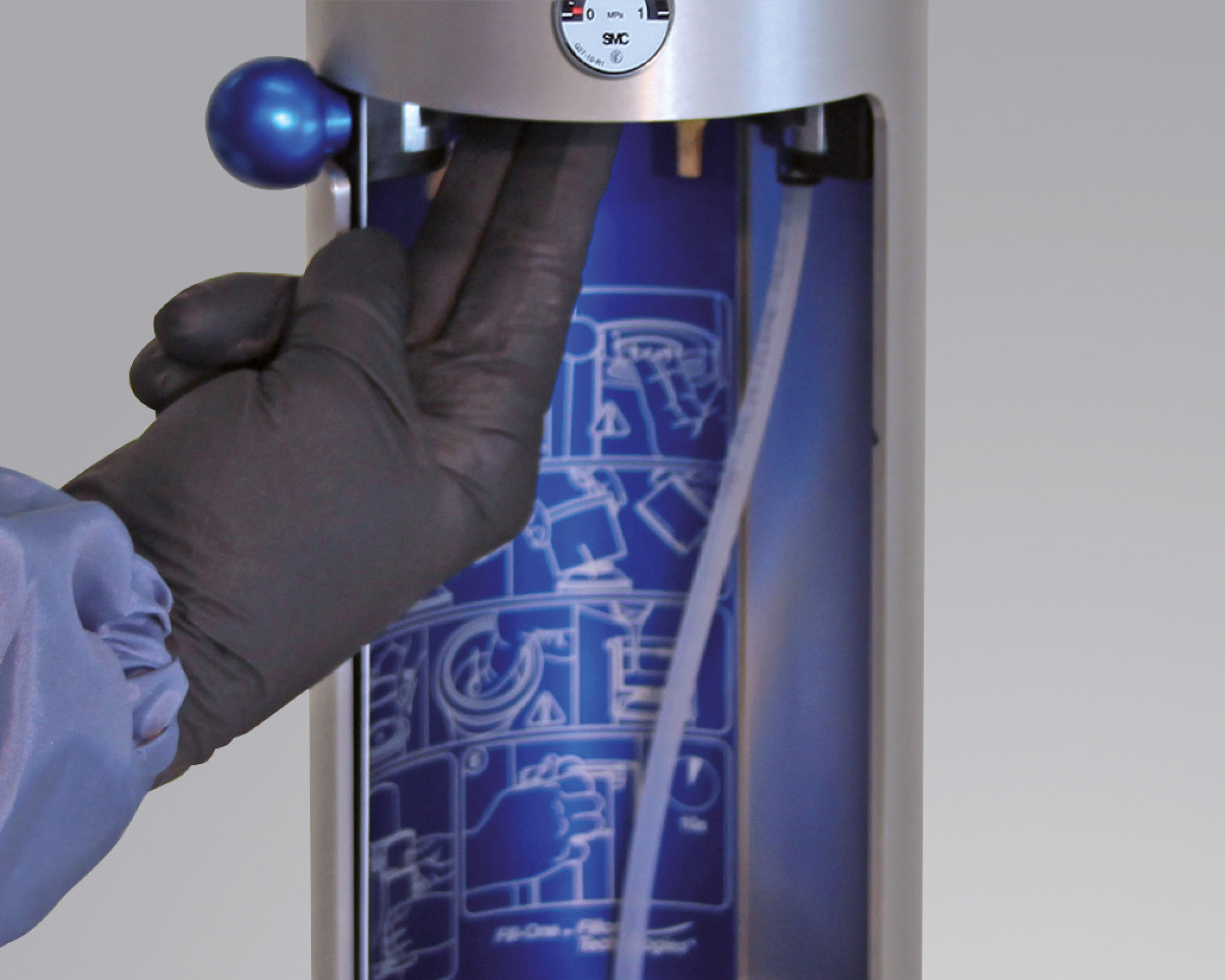

Place the filling pad on the indentor until the safety flap is folded down.

Trace the pad edge and press firmly.

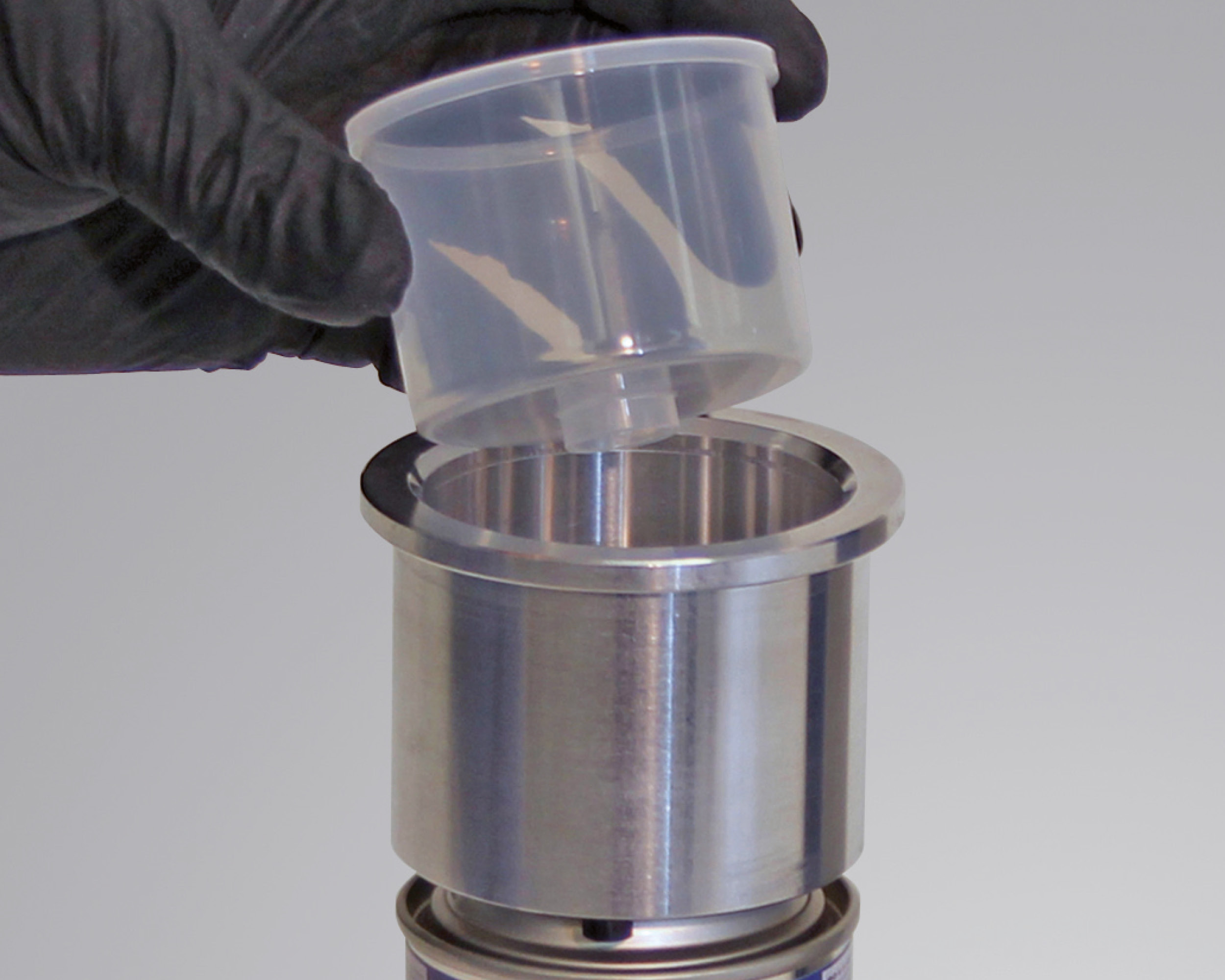

Put on the cylinder, insert the FillClean cap and press it down.

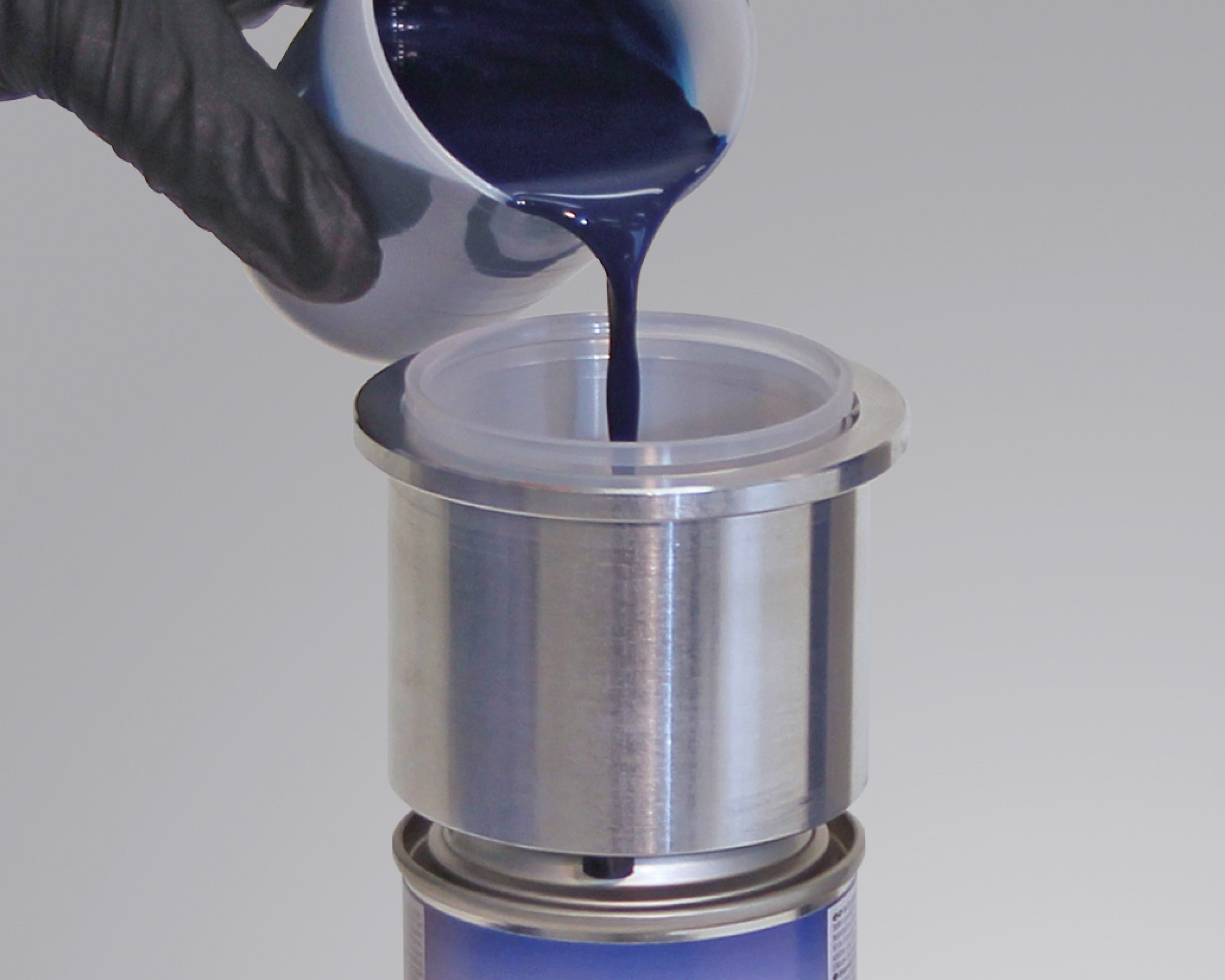

Filling with the mixed original colour shade.

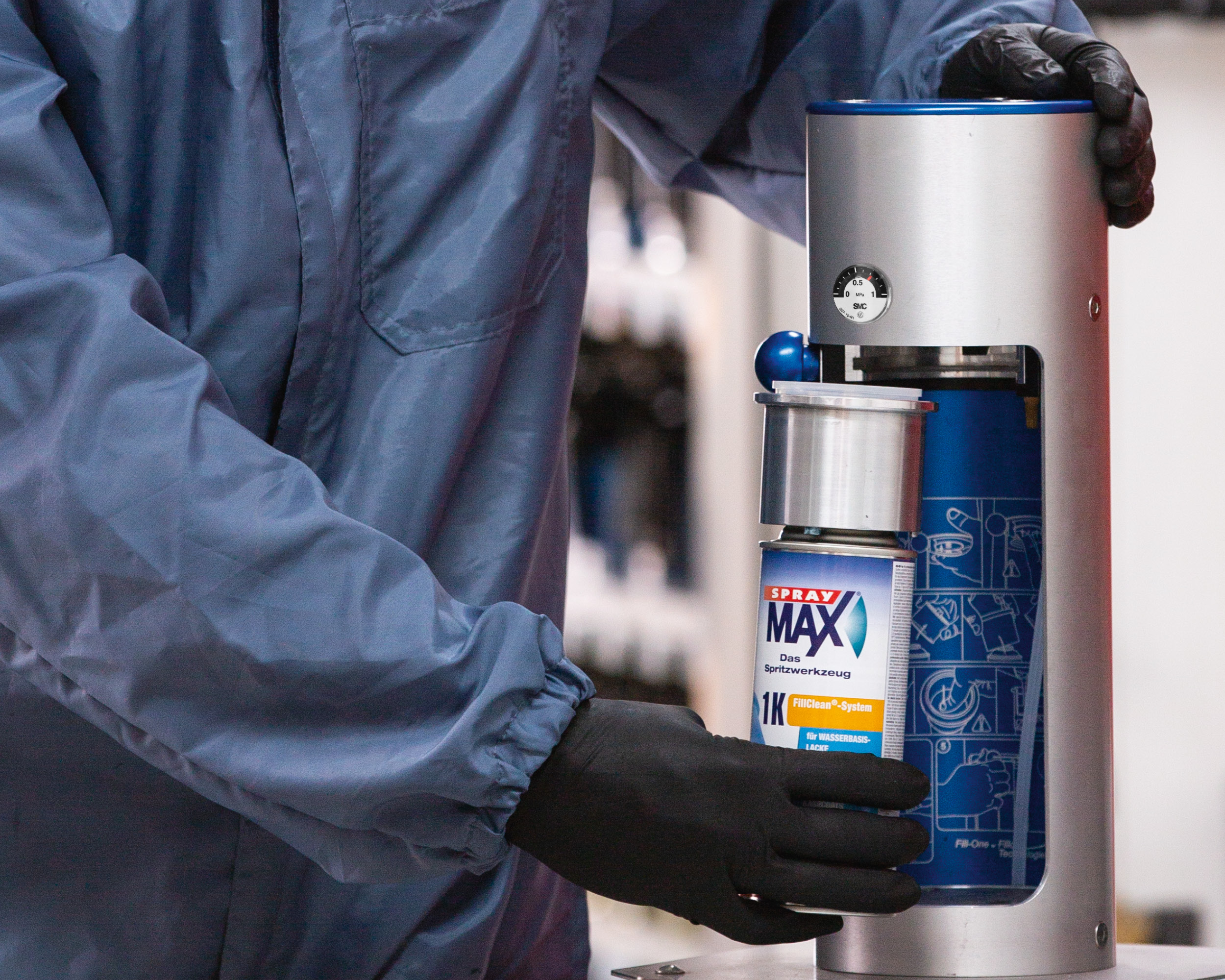

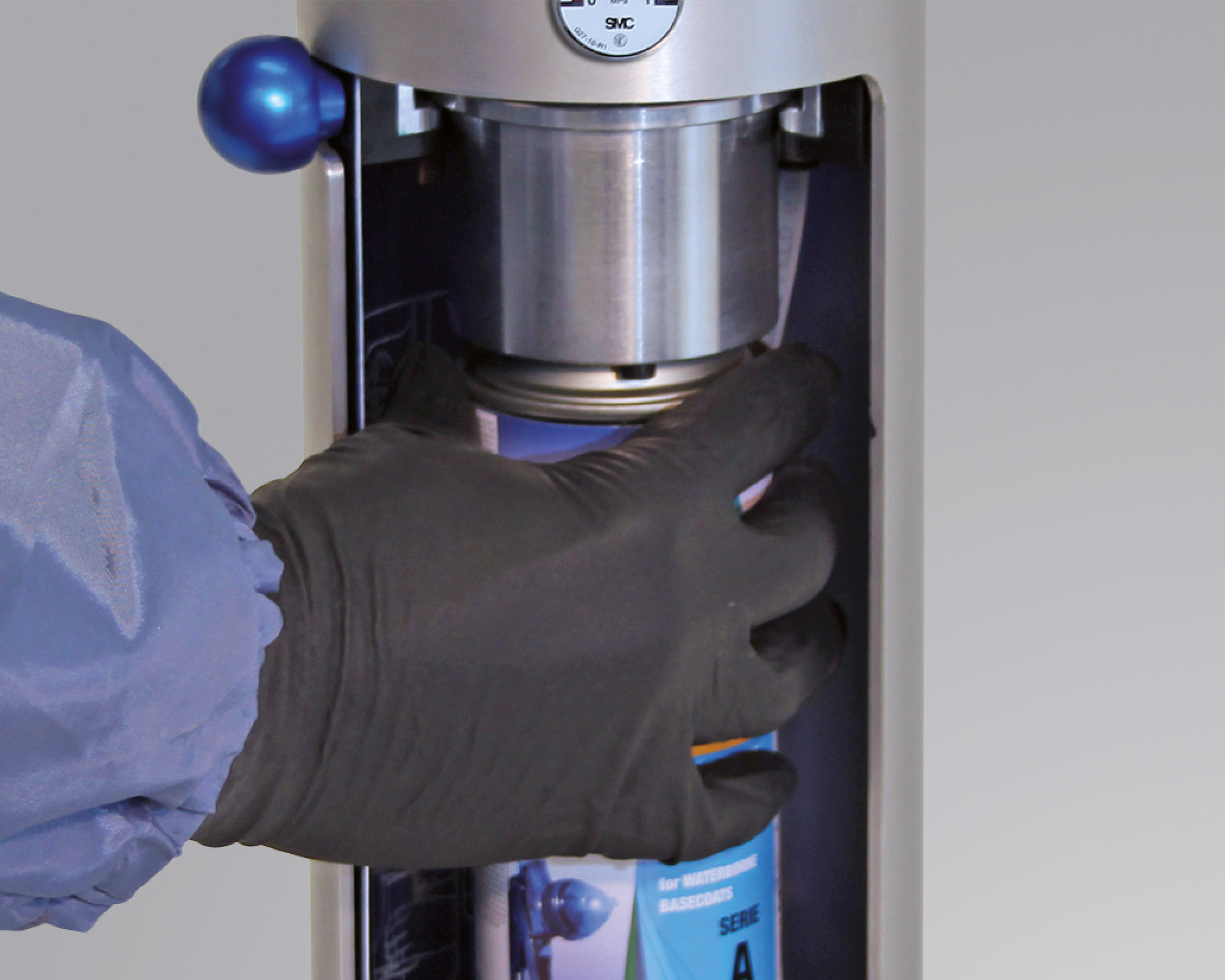

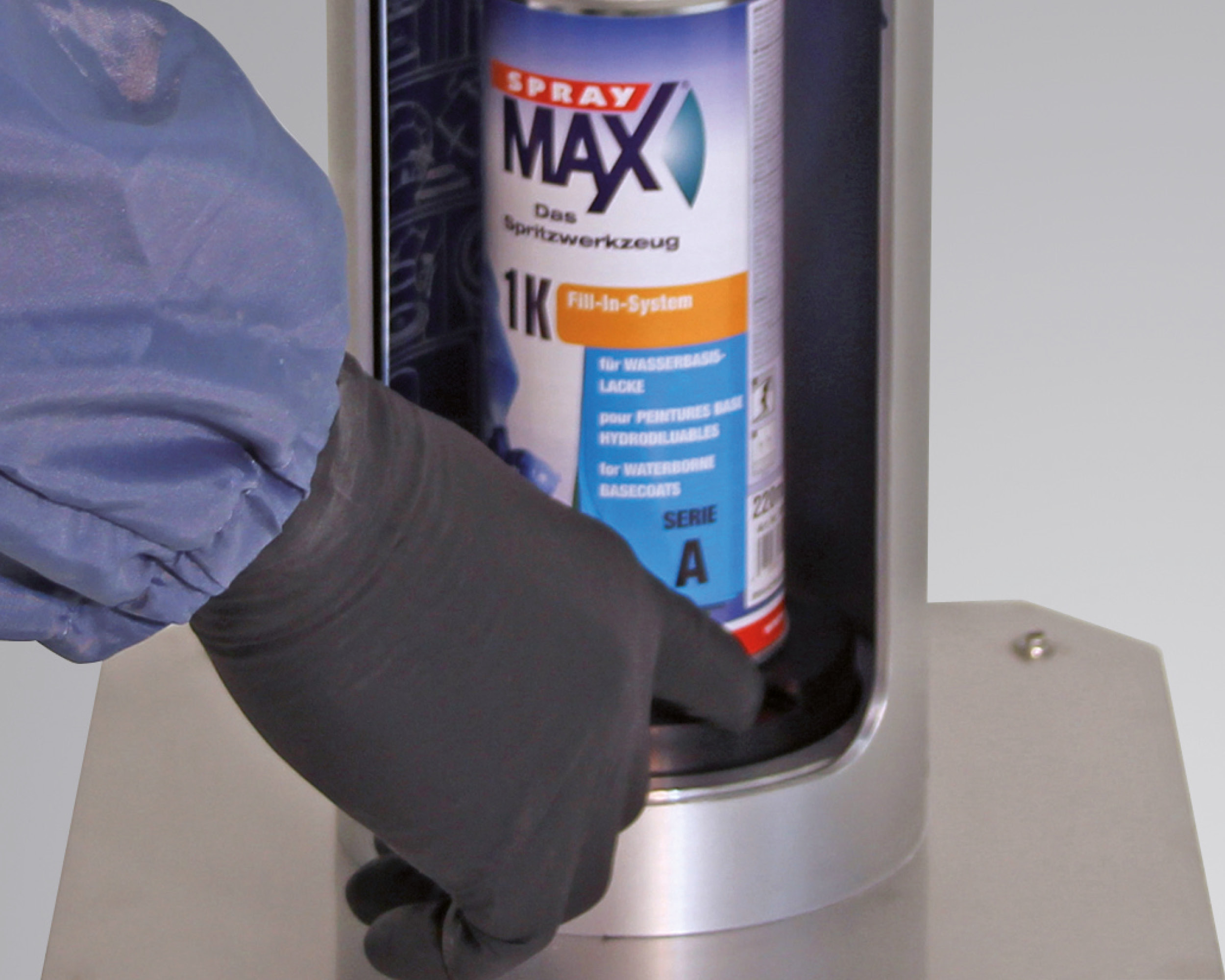

Carefully insert the can with the filled cylinder into the unit. Note pressure gauge reading: 0.7-1.0 bar.

Turn the turntable of the appliance slightly upwards so that the can is fixed.

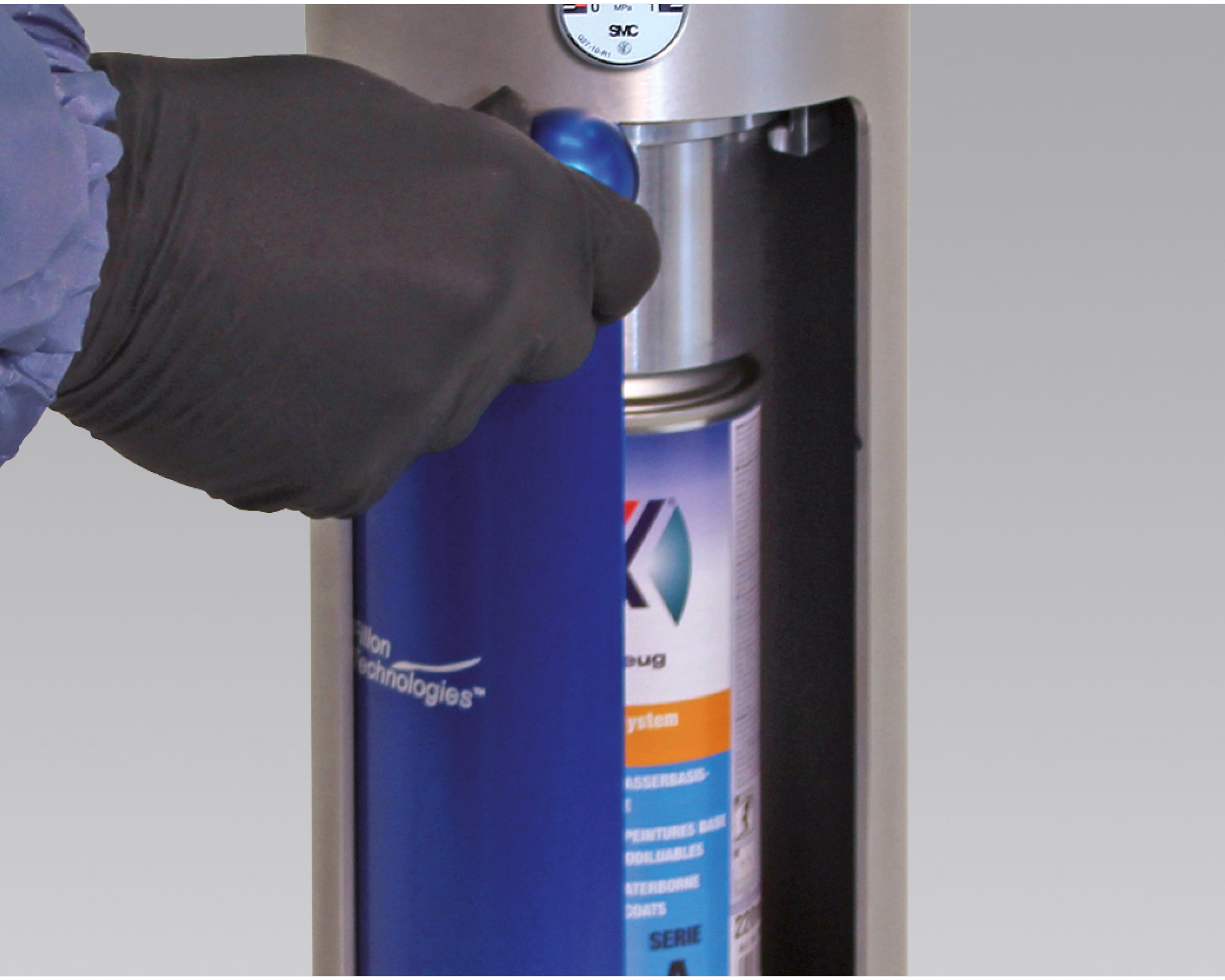

Close the door to the right to trigger filling.

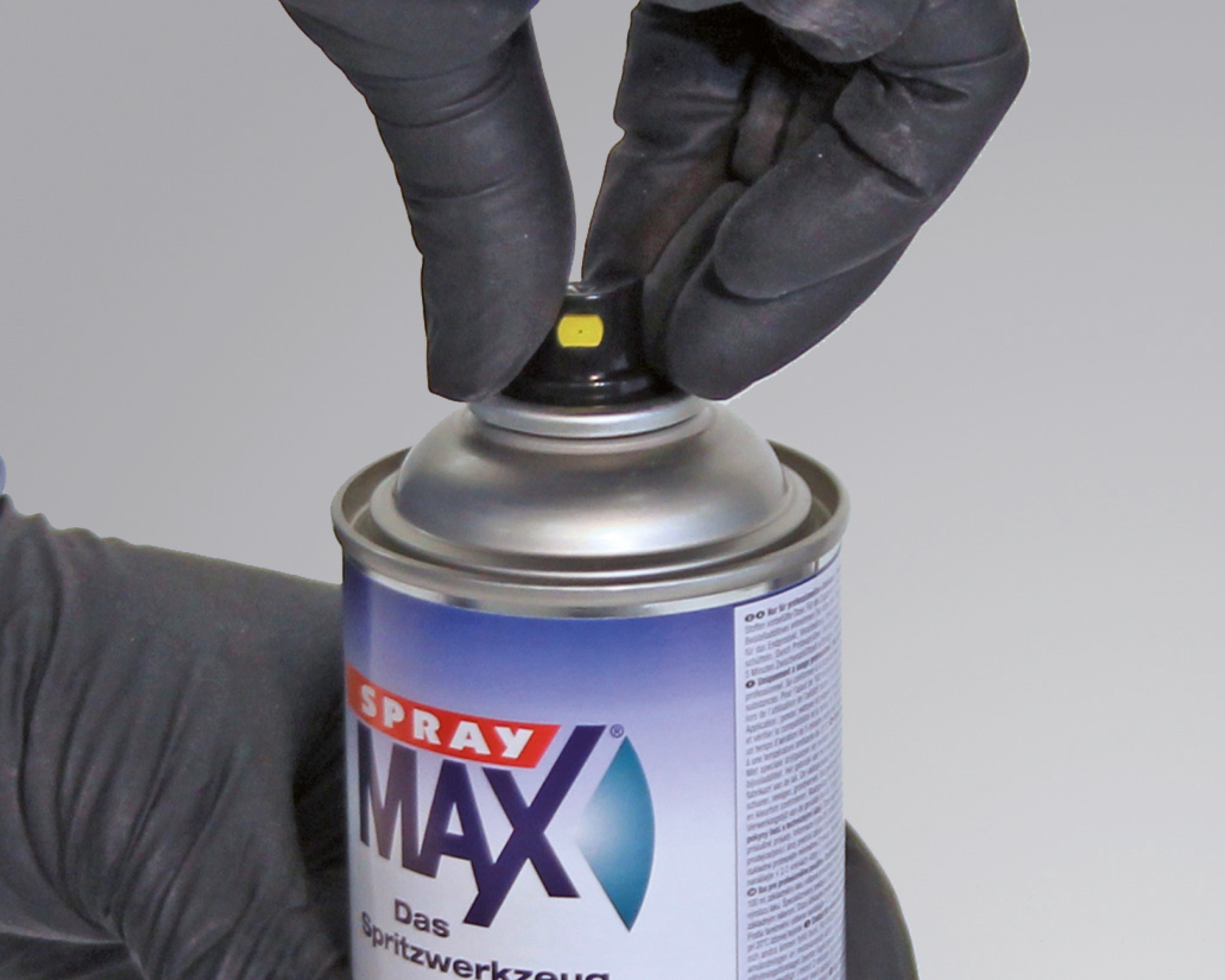

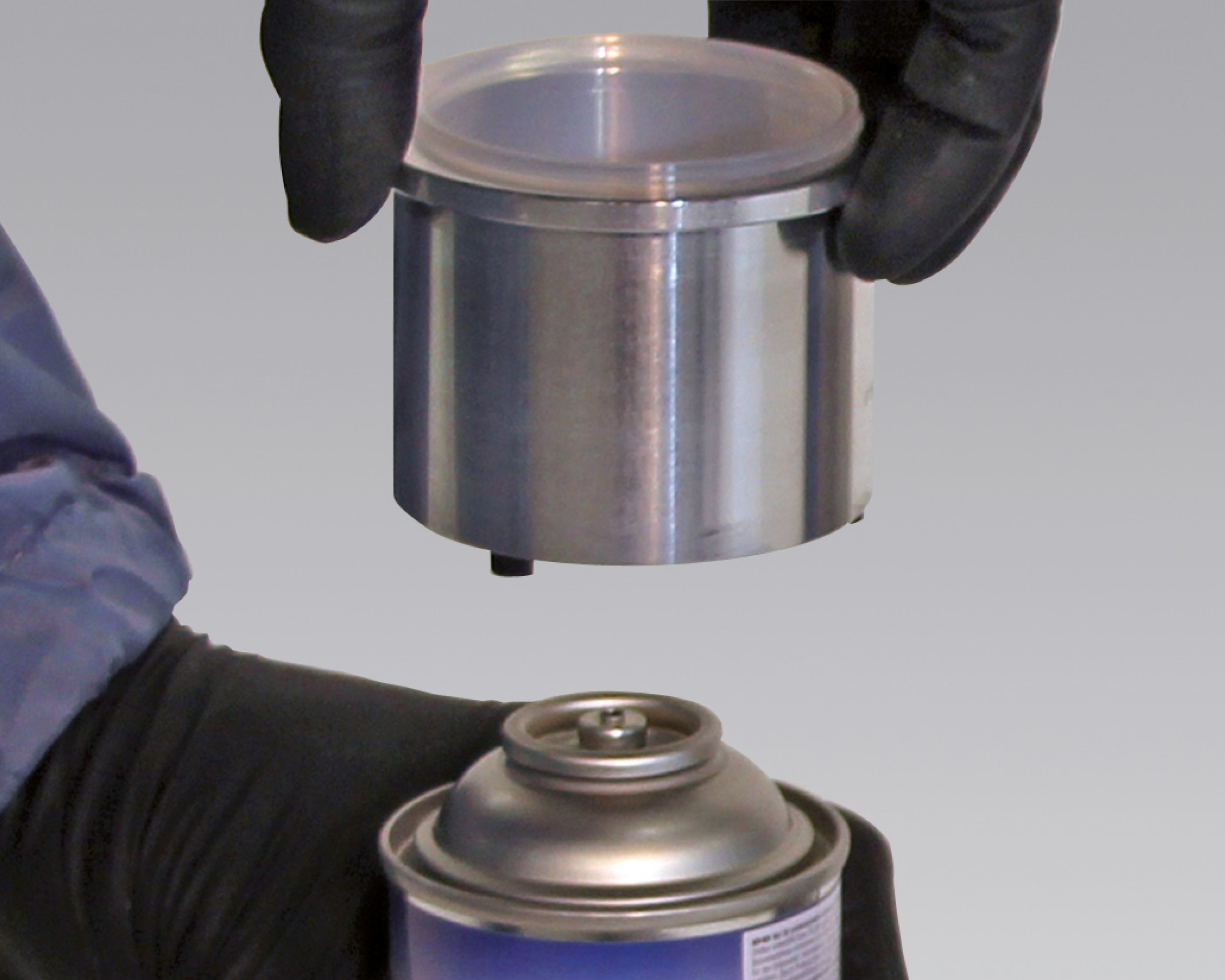

Remove the cylinder and cap.

Put on the spray head.

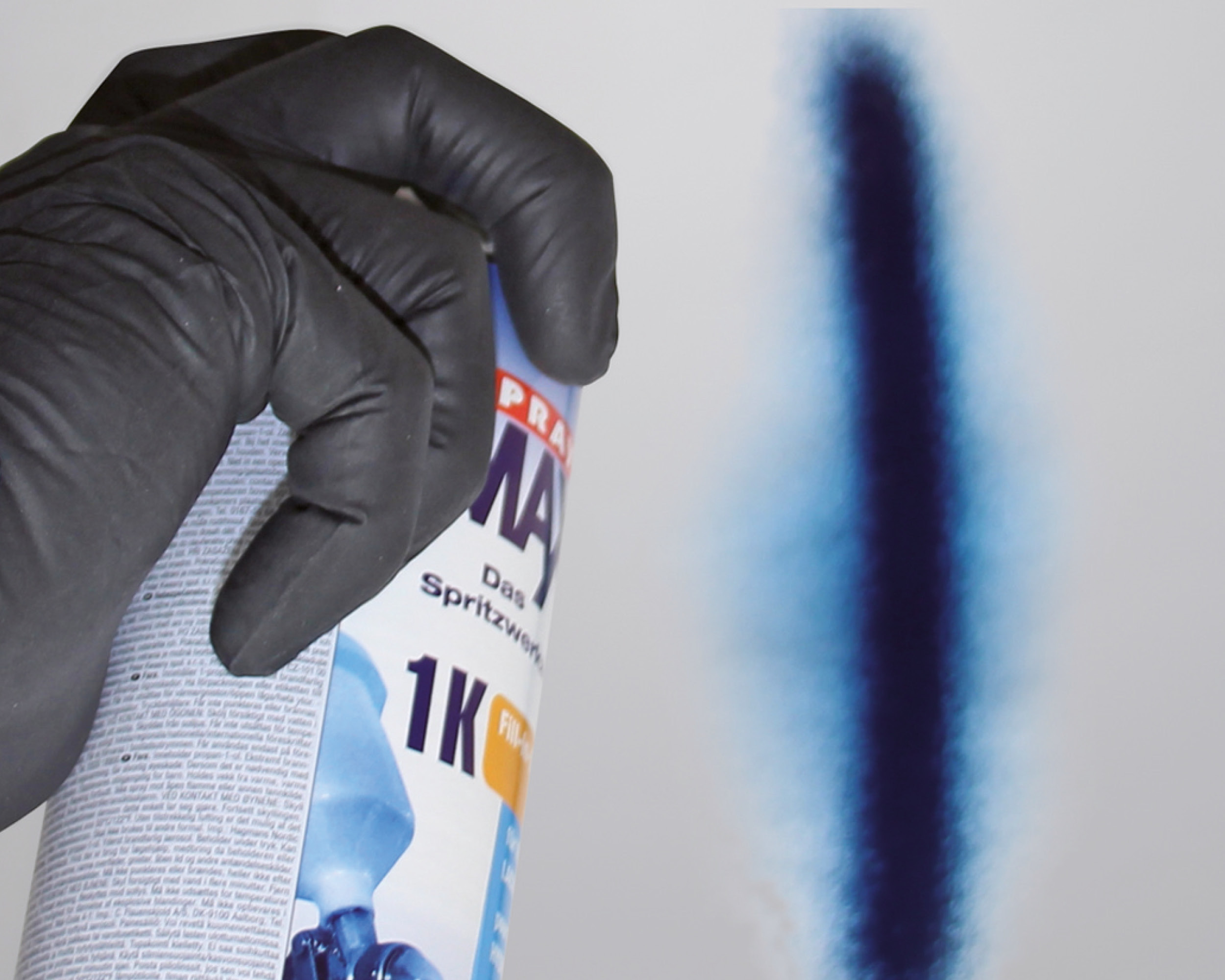

1. shake can
2. check colour
3. spray valve empty if necessary (see TMB)

The pad remains in the cap and thus creates the colour print.

Filling process 2K 400ml, 250ml spray paint can

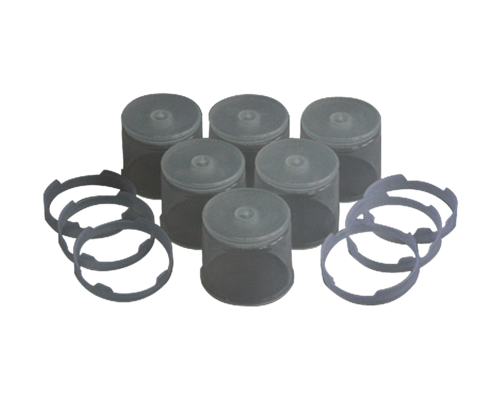

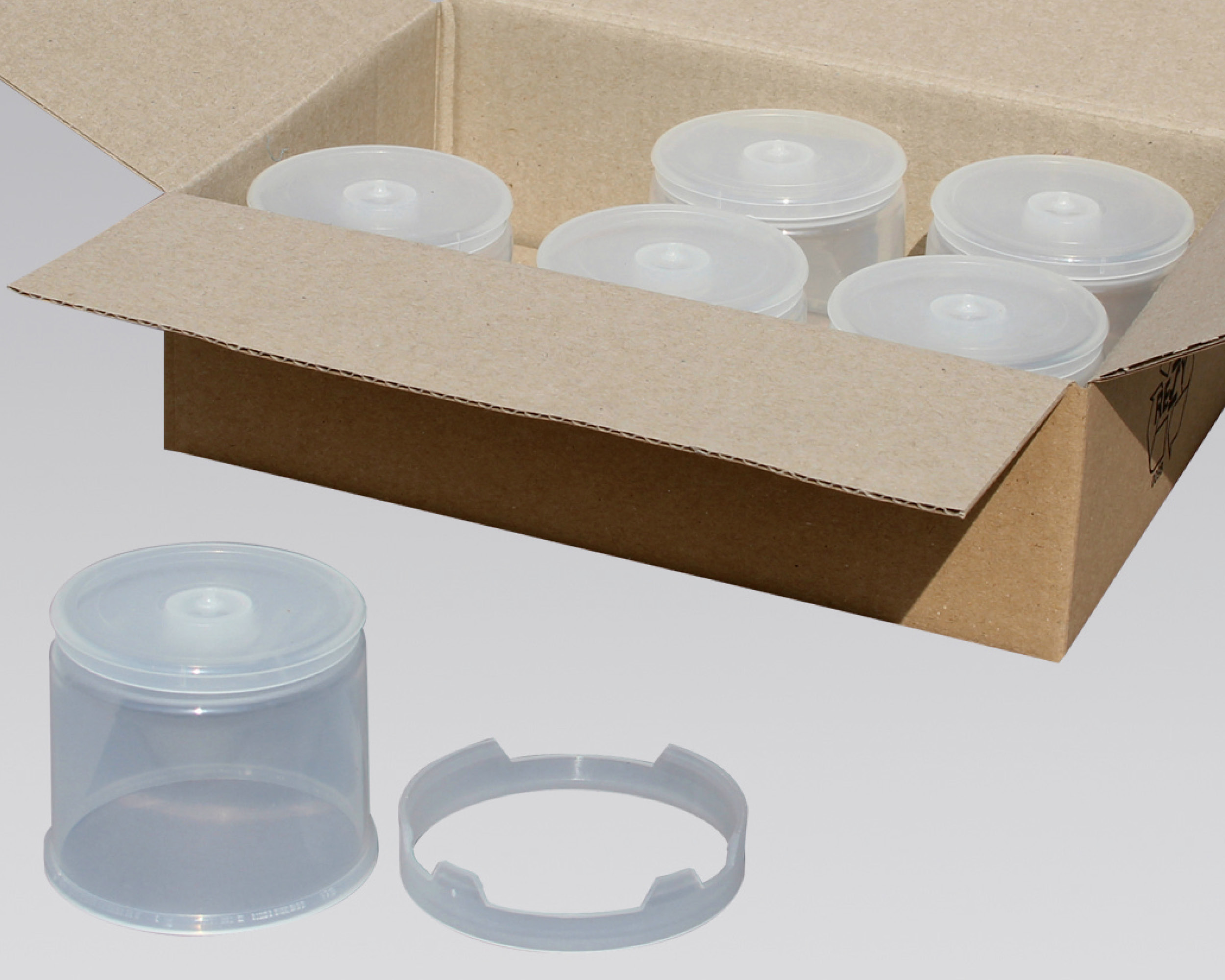

2K can: FillClean cap for filling cylinder and adapter ring as cap holder.

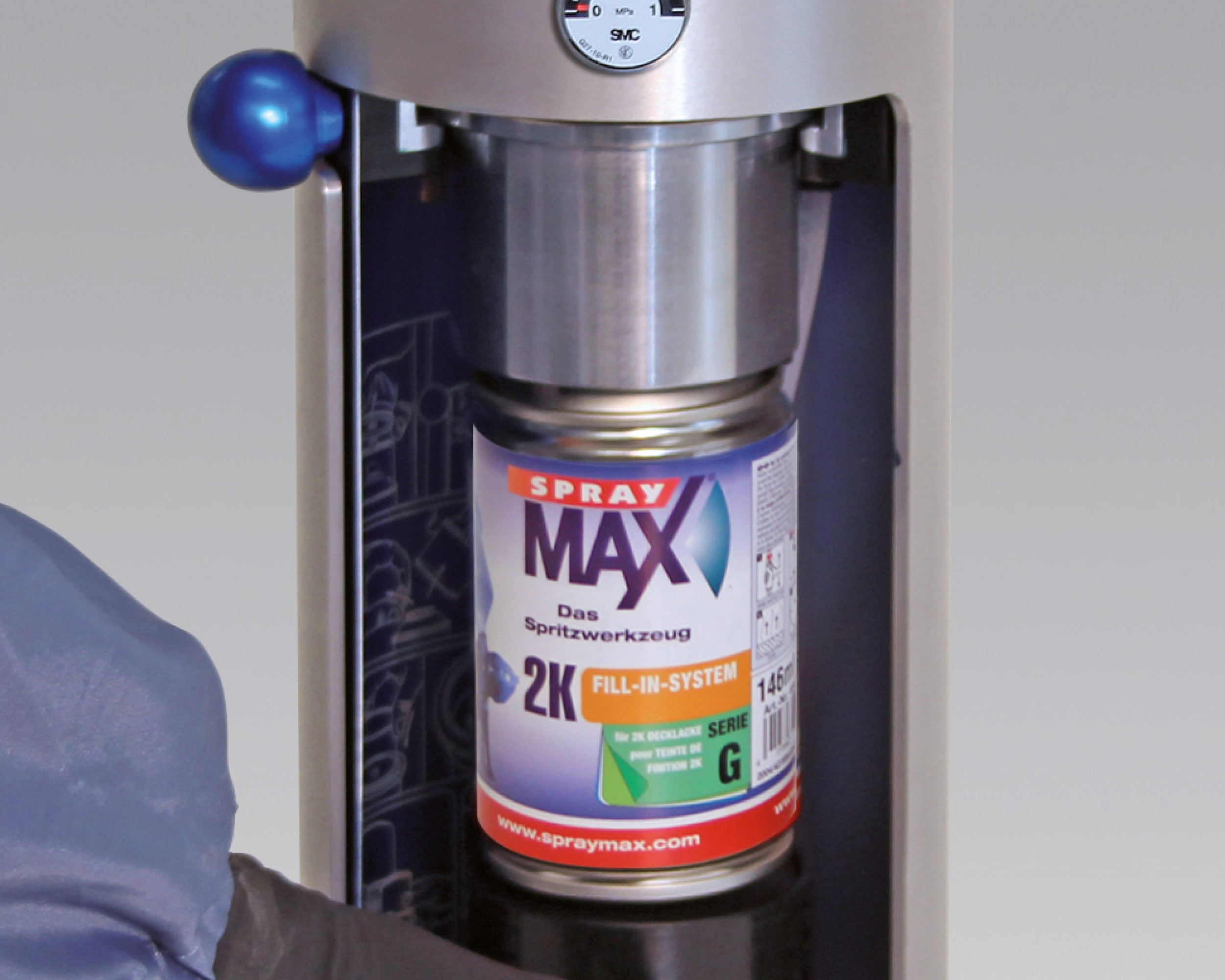

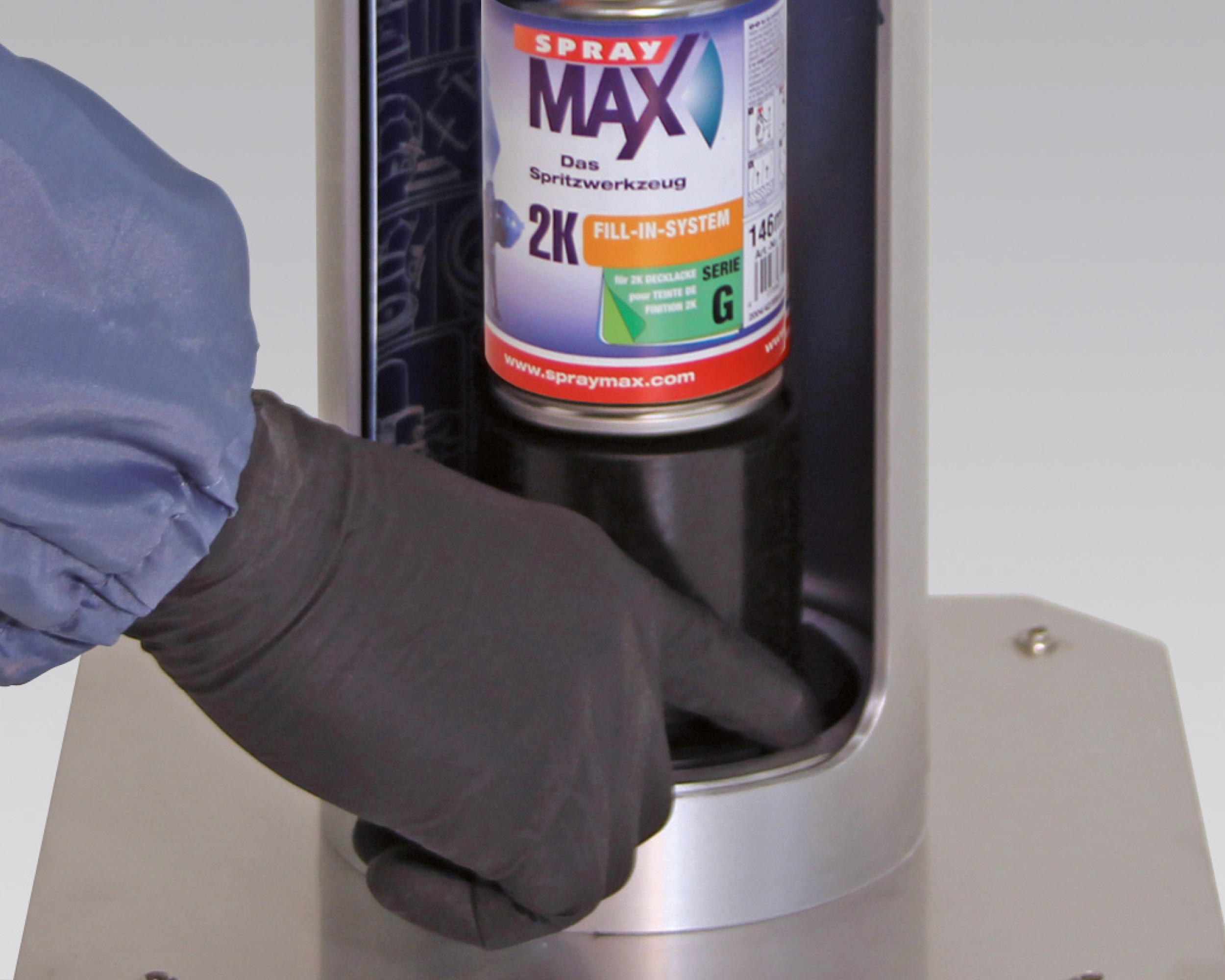

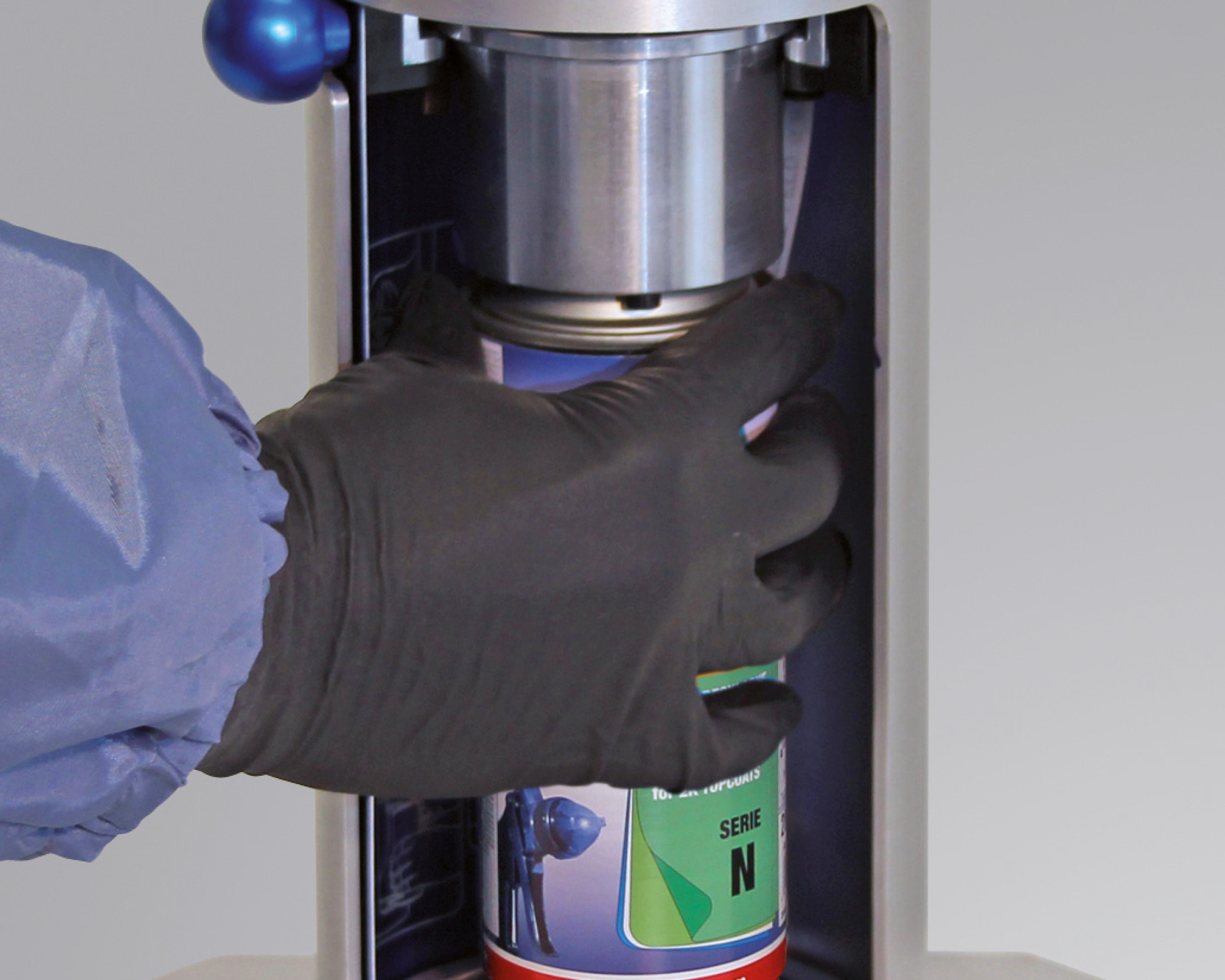

Filling steps 1 - 9 analogue filling 1K (400 ml) Exception: Step 7.

2K 250ml: Filling adapter is required as height compensation during filling.

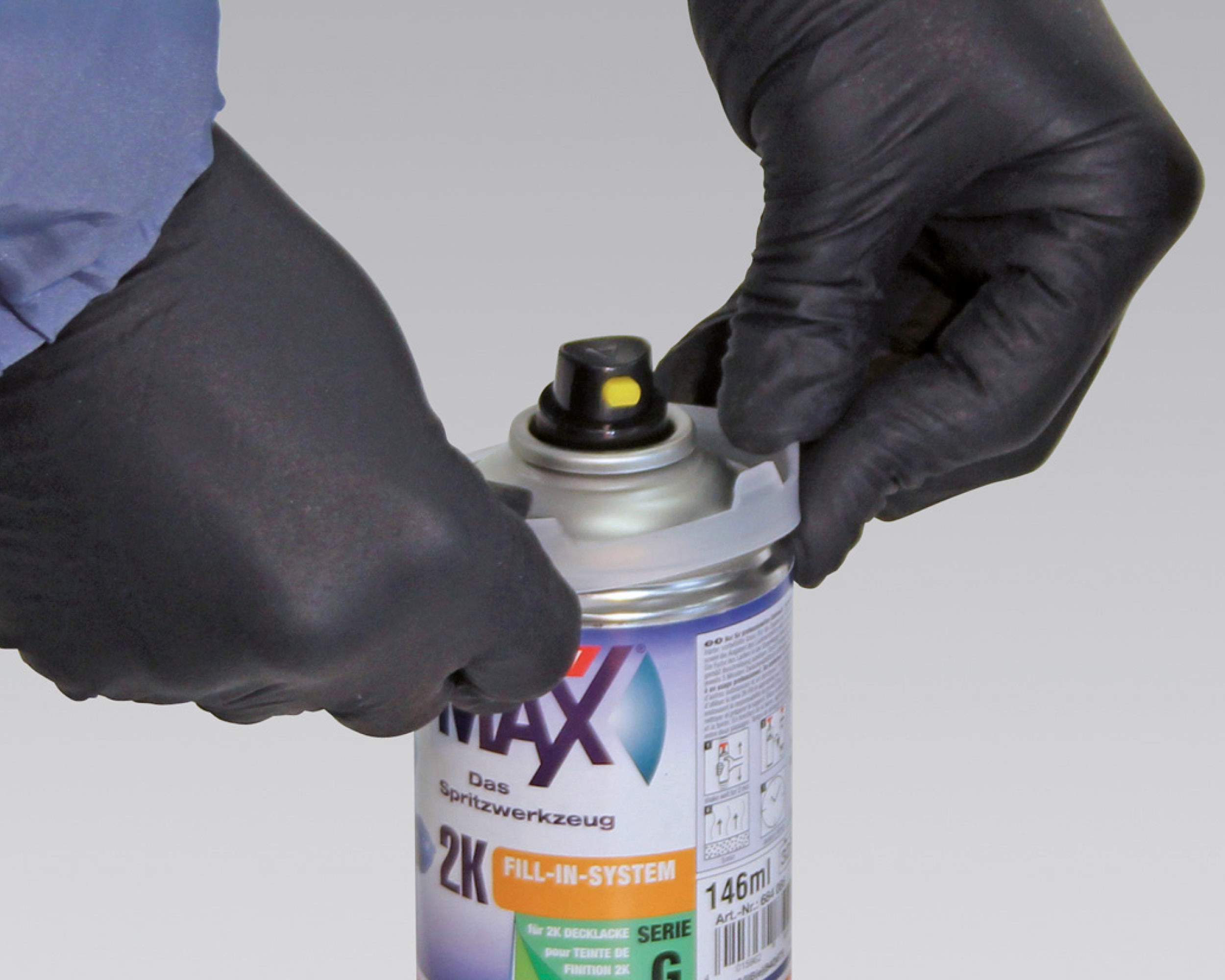

Put on spray head and adapter ring for cap holder.

Place the release button on the dome with the smooth side and opening facing outwards.

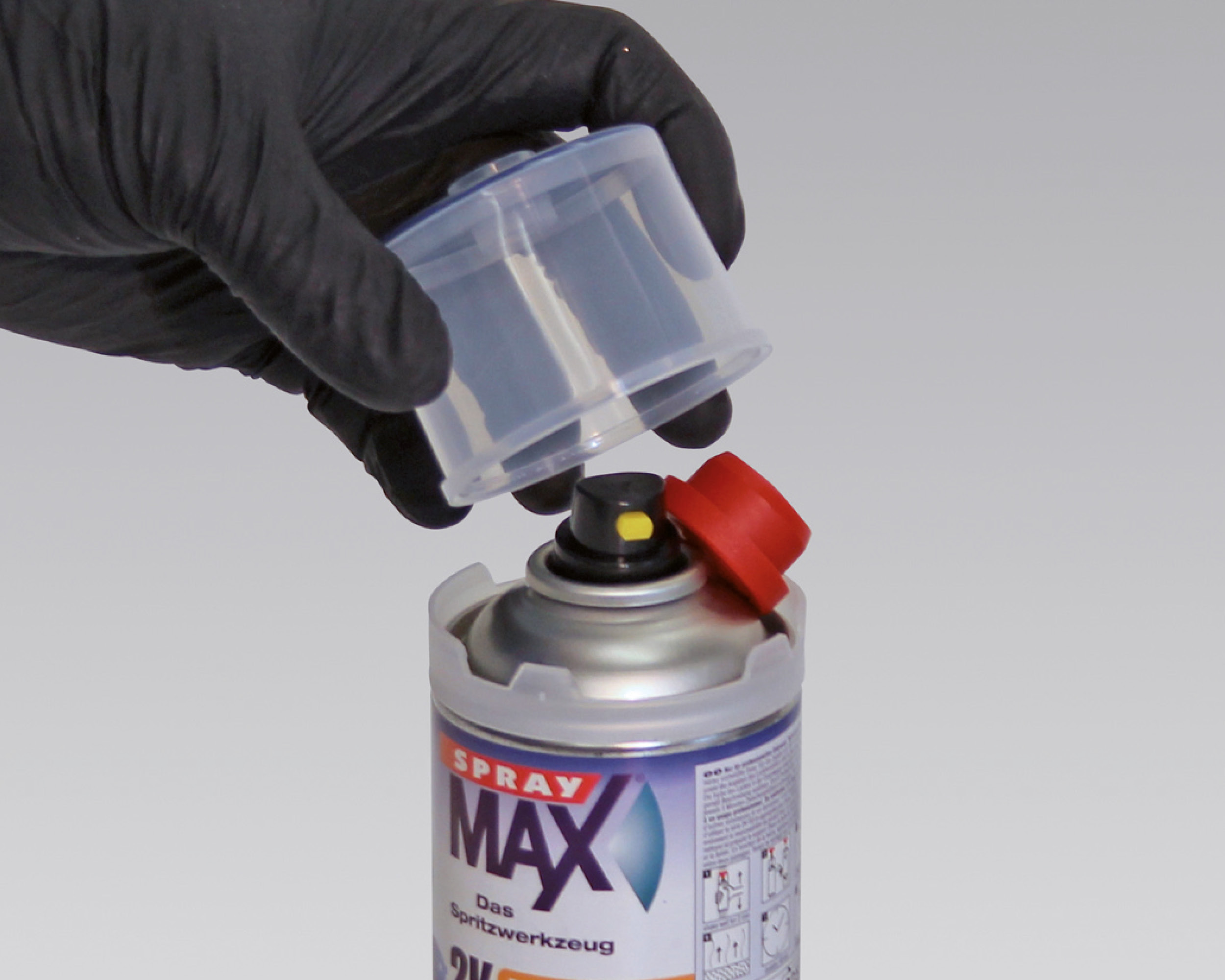

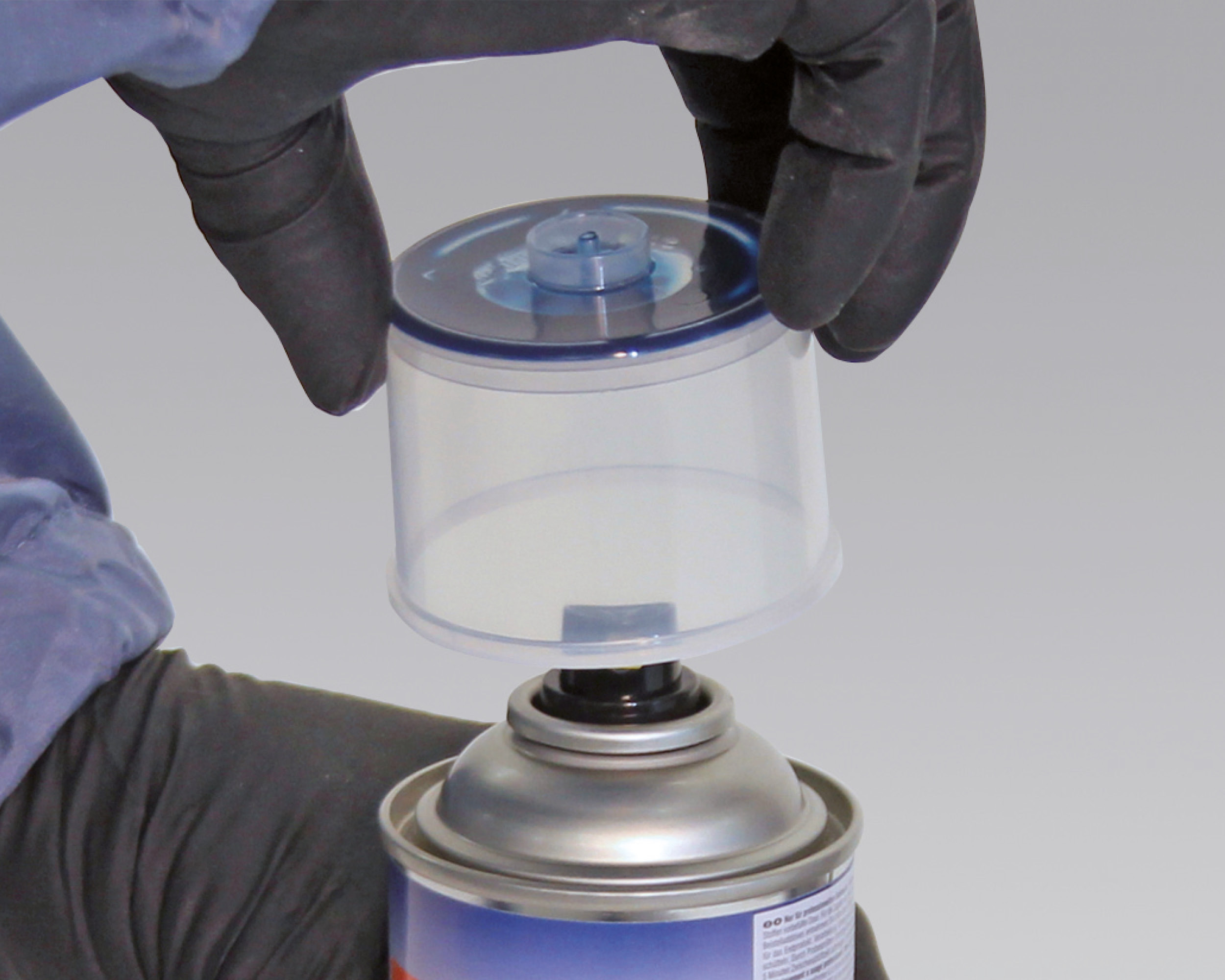

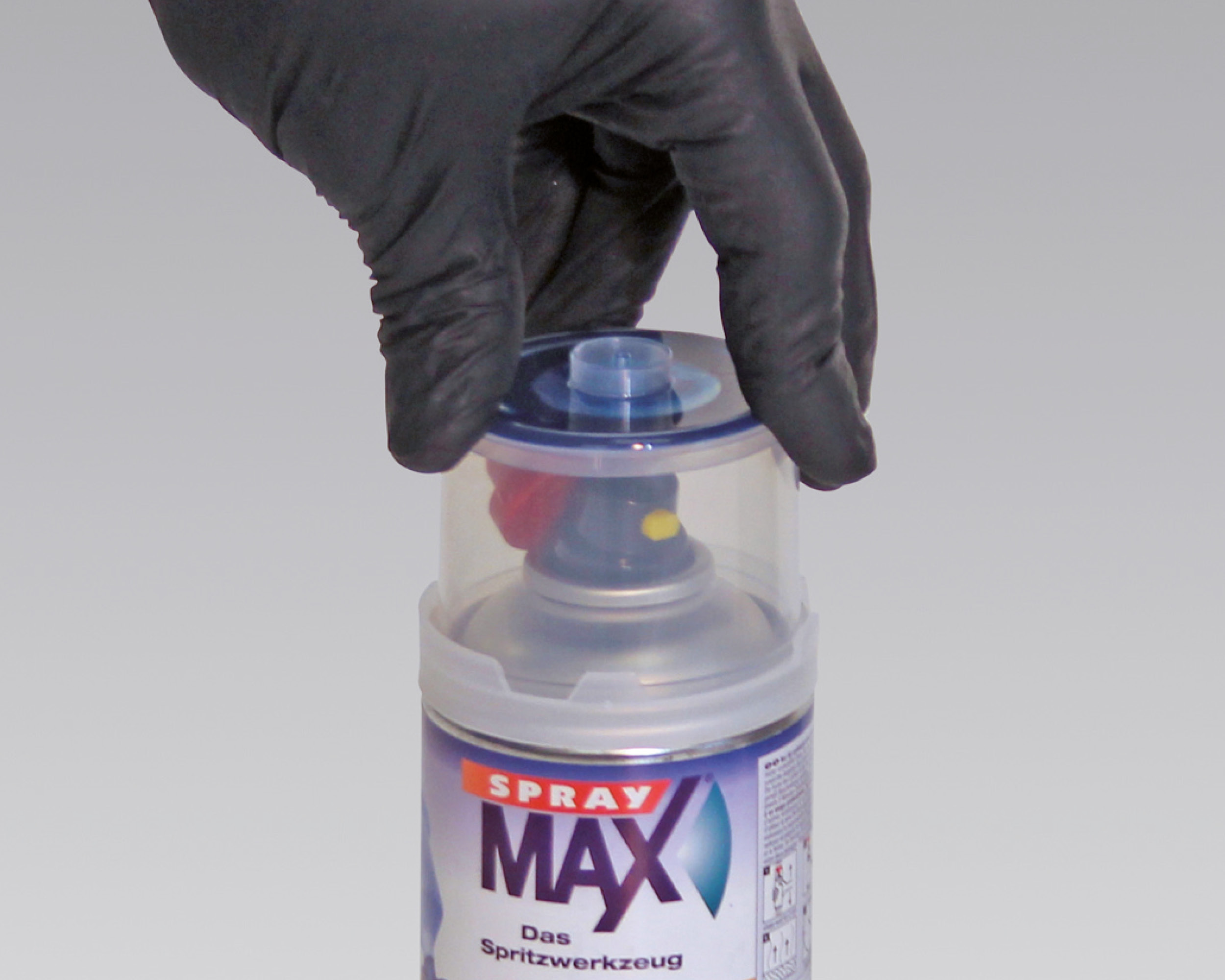

Carefully put on the cap with the colour marking.
