Filling process 1K 400ml spray paint can

Stir the mixed paint.

Place the filling pad on the indentor until the safety flap is folded down.

Trace pad edge and press firmly.

Attach cylinder, insert FillClean cap & press firmly.

Filling with the original color shade mixed out.

Carefully insert the can with the filled cylinder into the unit. Observe pressure gauge reading: 0.7-1.0 bar.

Turn the turntable of the device slightly upwards so that the can is fixed.

Close the door to the right to trigger filling.

Remove cylinder and cap.

Put on the spray head.

1. shake can
2. check color
3. spray valve empty if necessary (see TMB)

The pad remains in the cap and thus creates the ink impression.

Filling process 2K 400ml, 250ml spray paint can

FillClean set of caps 3990260 (6 pcs) for filling cylinder and adapter ring as cap holder.

Filling steps 1 - 9 analog filling 1K (400 ml) Exception: Step 7.

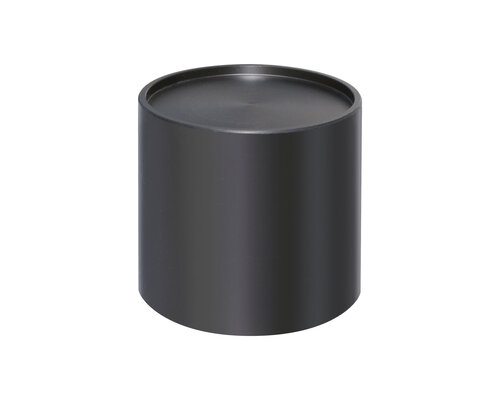

2K 250ml: Filling adapter is required as height compensation during filling.

Attach spray head and adapter ring for cap holder.

Place the release button on the dome with the smooth side and opening facing outward.

Carefully place the cap with color marking.
