1K E-Coat Primer
SprayMax E Coat primers are a true direct to metal coating matching the color and gloss of factory pri-mers and e-coat colors.
SprayMax E Coat primers provide superior corrosion protection. Perfect color and gloss match for restoring the original appearance and gloss of factory ecoats. Use E-COAT on any e-coated panel, vehicle floor, engine bay, core support , trunk area, any inner body panel.
Advantages
- Superior corrosion protection
- Excellent color and gloss match to OEM factory coatings
- Direct to steel and aluminum
- Good hiding

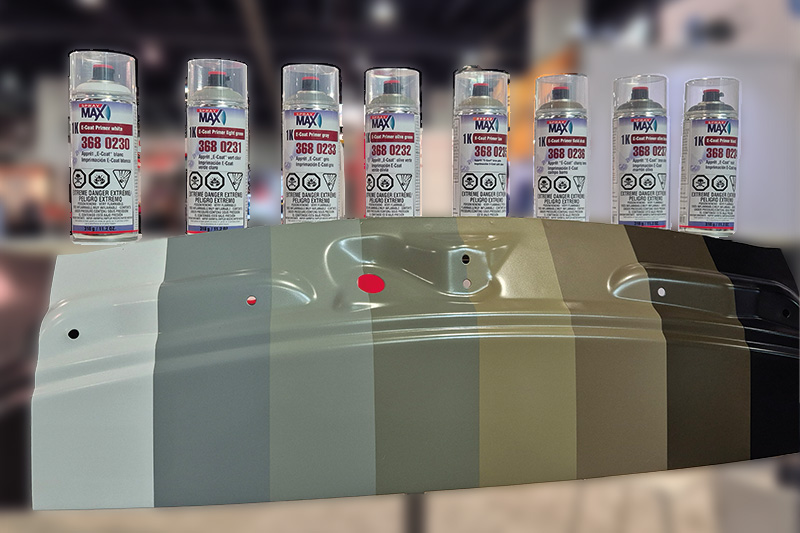

- Available in 6 popular OEM colors
- Compatible with most automotive basecoats
Article number
3680230 white
3680231 light green
3680232 olive green
3680233 gray
3680234 black
3680235 TAN


Application notes
Spray distance
6 - 8 inches / 15 - 20 cm
Spray pass
Dry film thickness 1.2 - 1.8 mil (30 - 45 μm) (approx. 1 - 2 spray coats)
Flash-off time
flash off time: 5 - 10 min between each spray coat
Drying „Dust dry“
TG1 dust dry: 25 min
Safety data sheets
Safety data sheet (3680230, EN) Safety data sheet (3680230, ES) Safety data sheet (3680231, EN) Safety data sheet (3680231, ES) Safety data sheet (3680232, EN) Safety data sheet (3680232, ES) Safety data sheet (3680233, EN) Safety data sheet (3680233, ES) Safety data sheet (3680234, EN) Safety data sheet (3680234, ES) Safety data sheet (3680235, EN) Safety data sheet (3680235, ES) more
Technical information sheets
Technical information sheet (3680230, ES) Technical information sheet (3680230, EN) Technical information sheet (3680231, ES) Technical information sheet (3680231, EN) Technical information sheet (3680232, ES) Technical information sheet (3680232, EN) Technical information sheet (3680233, ES) Technical information sheet (3680233, EN) Technical information sheet (3680234, ES) Technical information sheet (3680234, EN) Technical information sheet (3680235, ES) Technical information sheet (3680235, EN) more
